Simple electric motor model.
The specified torque connect to the input terminal.
No output terminal.
Connect the mechanical rotation system domain signal to the physical signal port.
In response to the torque indicated by the controller, the current consumed / generated by the motor is calculated and the torque is output.
Motor loss can be easily considered by setting the motor efficiency value (friction is not considered).
The upper current limit can be set with parameters. The actual motor output torque is also limited according to the upper current limit.
No output terminal.
Connect the mechanical rotation system domain signal to the physical signal port.
In response to the torque indicated by the controller, the current consumed / generated by the motor is calculated and the torque is output.
Motor loss can be easily considered by setting the motor efficiency value (friction is not considered).
The upper current limit can be set with parameters. The actual motor output torque is also limited according to the upper current limit.

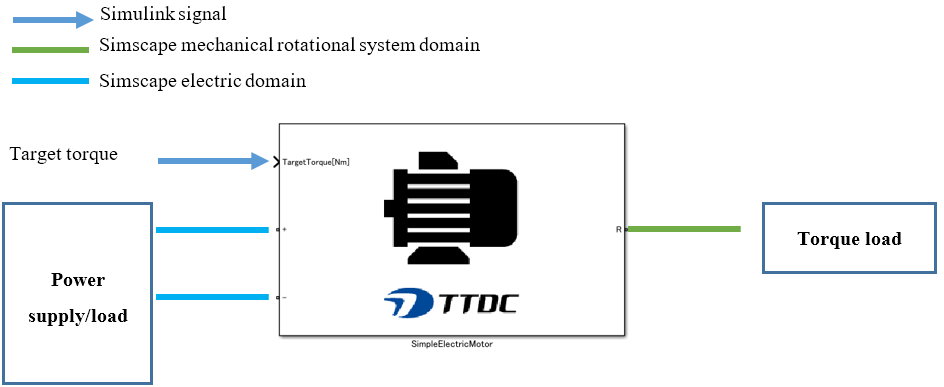

To connect a simple electric motor model:

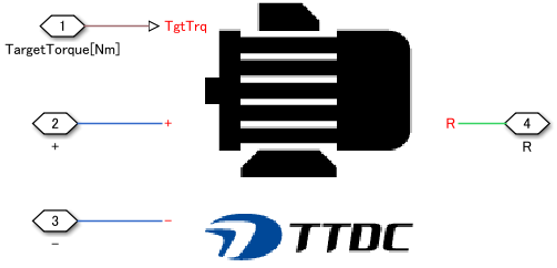

Simple electric motor model internal configuration diagram:
The internal configuration of this model
Operating environment:

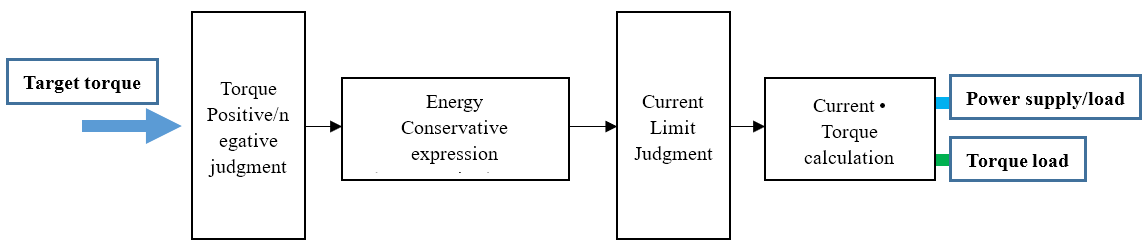

Block diagram:
Solver settings:
・Global solver
- Solver: Arbitrary
- Sample time: Dependents on the setting value of the local solver
・Local solver
- Solver: Backward Euler method
- Sample time: 1 msec
- Number of iterations: 3 times
- Solver: Arbitrary
- Sample time: Dependents on the setting value of the local solver
・Local solver
- Solver: Backward Euler method
- Sample time: 1 msec
- Number of iterations: 3 times
Model constraints:
- This model does not simulate or guarantee the behavior and behavior accuracy of the actual machine.
- If the file structure in the library folder is changed, this model does not work.
- Operation in other than the above operating environment and solver settings is not covered by the warranty.
- Operation with other than the supplied parameter set is not covered by the warranty.
- In the initial state, the torque load model shall be at the rest state.
- If the file structure in the library folder is changed, this model does not work.
- Operation in other than the above operating environment and solver settings is not covered by the warranty.
- Operation with other than the supplied parameter set is not covered by the warranty.
- In the initial state, the torque load model shall be at the rest state.
